Lift-all endless roundsling

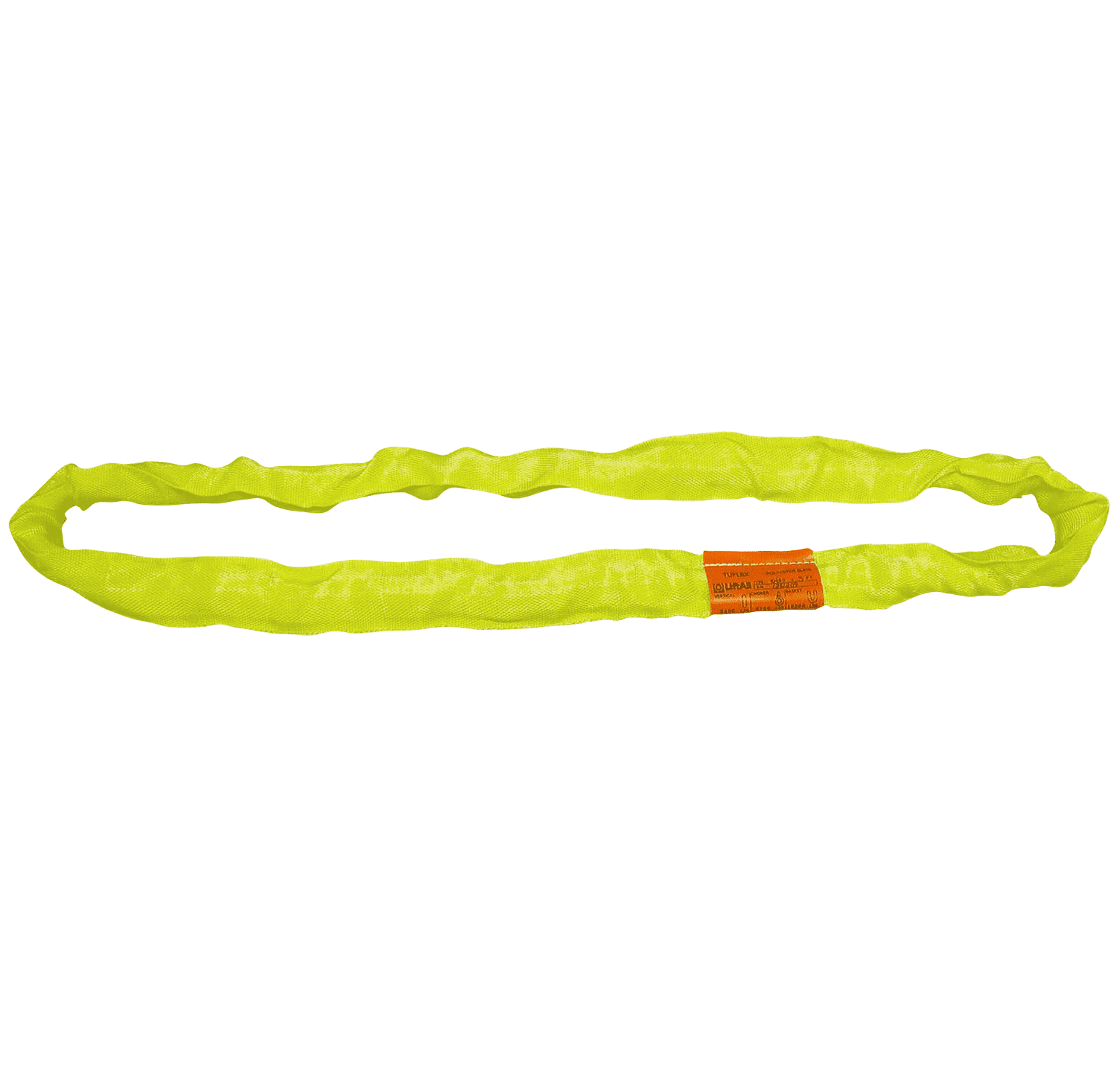

LIFT-ALL Yellow Endless Roundslings

Item Number: N/A Categories: , , , Tags: , ,

Lift-All Tuflex roundsling is an endless synthetic sling made from a skein of polyester yarn covered by a double-wall tubular jacket. The roundsling body can be compared to sling webbing with the tubular jacket face yarns woven without binder yarns. This allows the core yarns to move independently within the jacket.

Contact us if you have any questions.

Part Number
Color
Rated Capacity (lbs) Vertical
Rated Capacity (lbs) Choker
Rated Capacity (lbs) Basket at 90°
Rated Capacity (lbs) Basket at 45°
Minimum Hardware Diameter
LAEN30
Purple
2,600
2,100
5,200
3,600
0.44"
LAEN60
Green
5,300
4,200
10,600
7,400
0.63"
LAEN90
Yellow
8,400
6,700
16,800
11,800
0.75"
LAEN120
Tan
10,600
8,500
21,200
14,000
0.88"
LAEN150
Red
13,200
10,600
26,400
18,000
1.00"
LAEN180
White
16,800
13,400
33,600
23,000
1.13"
LAEN240
Blue
21,200
17,000
42,400
29,000
1.19"
LAEN280
Orange
25,000
20,000
50,000
35,000
1.25"
LAEN360
Gray
31,000
24,800
62,000
43,000
1.50"
LAEN600
Brown
53,000
42,400
106,000
74,000
2.00"
LAEN800
Olive
66,000
52,800
132,000
93,000
2.13"
LAEN1000
Black
90,000
72,000
180,000
127,000
2.50"

Reviews

Be the first to review “LIFT-ALL Yellow Endless Roundslings”

We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.

View Program Details
Product Specifications
Weight 9 lbs
Shipping Dimensions 16 × 9 × 9 in
Brand

Lift-All
More Product Information

DCD Line Swivels

DCD Locking Line Swivels are typically constructed with a bronze thrust bearing for tensile load and a radial bearing for bending load. The bronze bearing will rotate up to a portion of the safe working load before locking. Once past this point, rotation will only occur when pulling tension is relieved.

Sizes 00505-020 and larger are supplied with a grease point for lubrication. This is particularly useful in overhead applications where high-speed rotation is possible.

All sizes of both types are pull tested to verify the 3:1 safety factor. Test certificates are available upon request. Visit our website for articles with more information on 3:1 and 5:1 Safe Working Loads.

Sizes 00505-025 and larger are supplied with hexagon clevis pins. Smaller sizes have slotted clevis pins.

Under no circumstances should alternate clevis pins be used.

Permanent peen marking is now standard on all line swivels for all batches produced.
