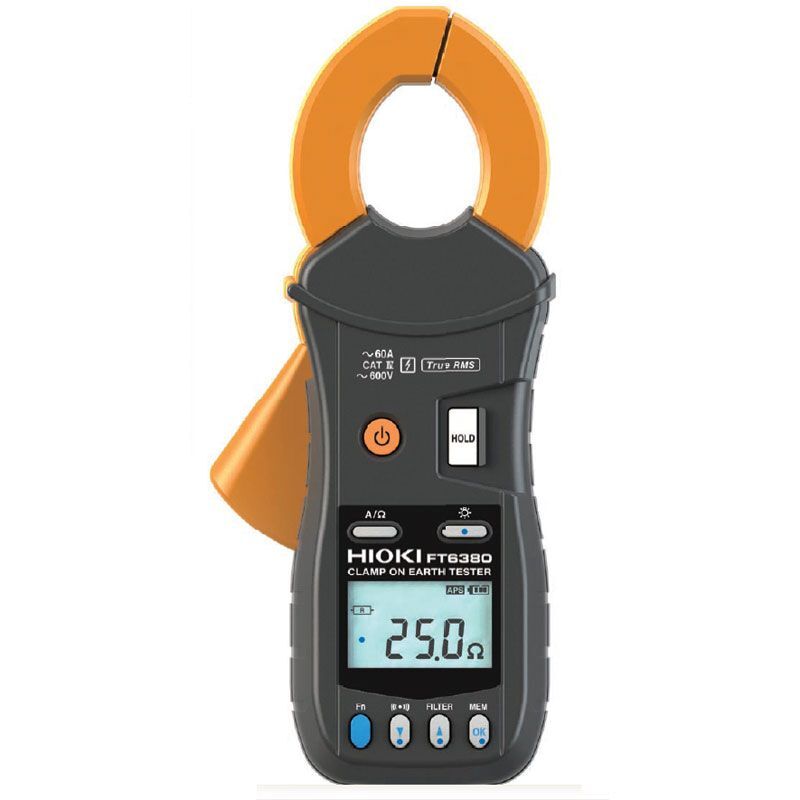

HIOKI FT6380-50 kit – Wireless Clamp On Earth Tester
The Hioki FT6380-50 KIT Digital Clamp On Earth Tester/Ground Resistance Tester Kit includes the FT6380-50, which measures grounding resistance simply by clamping to multiple-grounded ground wires. No auxiliary grounding rod is needed, and there is no need to disconnect the ground wire from the grounding rod.
The compact, low-profile sensor can be used to clamp ground wires with ease, while also providing AC current measurement functionality; it can measure currents ranging from leakage current on the order of several mA to load currents of up to 60 A. The FT6380-50 KIT also includes the Z3210 wireless adapter that enables the use of Gennect Cross, a complimentary app that allows users to check and manage measurement results and create reports.
Contact us if you have any questions.
HIOKI FT6380-50 kit - Wireless Clamp On Earth Tester
- Performs earth resistance measurement for multi-grounded systems
- Wireless adapter allows transfer of measurements to smartphone or tablet
- Connects to Gennect Cross app, allowing users to quickly create reports with site photos and drawings
- Measures leak current with absolute certainty using highly sensitive 0.01 mA resolution (at 20.00 mA range)
- Measures load current up to 60.0 A range
- Clamps at the narrowest point with slim 0.79 in. (20mm) jaws
- Magnetic shields eliminate leakage flux between two cores for high accuracy and repeatability
- Large storage capacity for up to 2000 measurement values
- LCD display with bright backlight allows users to easily read results
- Alarm function audibly and visually notifies users when resistance or current value exceeds threshold
- Core jaw diameter: 1.26 in. (32mm)
|Dimensions||11 × 10 × 5 in|
LCD, Max. 2,000 count Display refresh rate: Approx. 2 times/sec
|Maximum Measurable Conductor Diameter||
LR6 alkaline battery X 2
|Continuous Operating Time||
Approx. 40 hours (25 Ω measurement, backlight off, without Z3210 installed)
|Auto Power Save||
Instrument automatically turns off approx. 5 min. after last key operation.
|Operating Temperature and Humidity Range||
-10°C (14°F) to 50°C (122°F), 80% RH or less (non-condensation)
|Storage Temperature and Humidity Range||
-20°C (-4°F) to 60°C (140°F), 80% RH or less (non-condensation, except for the battery)
|Dust-proof and Waterproof||
IP40 (EN60529) with jaws closed
|Maximum Rated Terminal-to-Ground Voltage||
600 VAC measurement category IV (anticipated transient overvoltage 8000 V)
|Maximum input Current (Current Measurement)||
100 A AC continuous, 200 A AC for 2 minutes (50 Hz/60 Hz)
|Effects of Conductor Position (Current Measurement)||
Within ±0.5% rdg (using the center of the sensor as the reference, in all positions)
|Effect of External Magnetic Field (Current Measurement)||
10 mA or less in an external magnetic field of 400 A/m at 50 Hz/60 Hz AC
Safety: EN61010, EN61557-1/-5/-13
Approx. 73W × 218H × 43D mm (2.87″W × 8.58″H× 1.69″D)
Carrying case, Resistance check loop (1 Ω±2%, 25Ω±1%), Strap, LR6 alkaline battery × 2, Instruction
