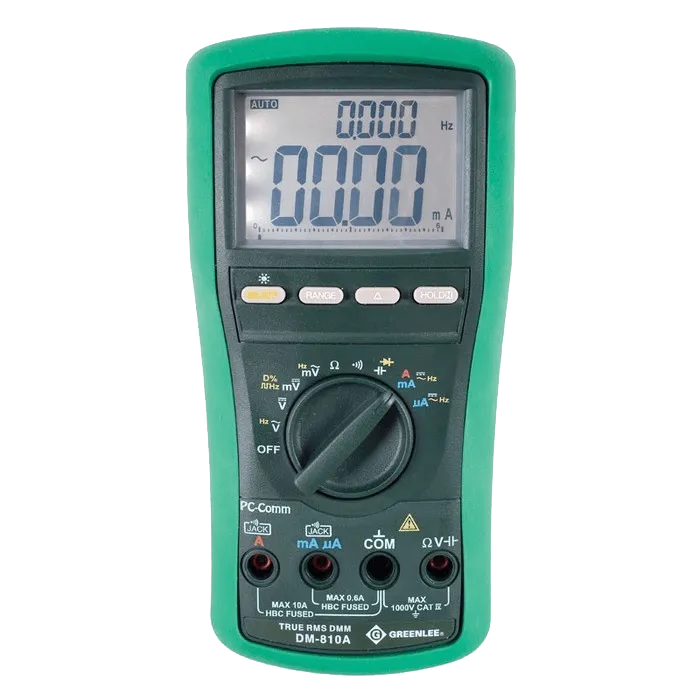

GREENLEE DM-810A True RMS Digital Multimeter
$223.85
Available on backorder
The Greenlee DM-810A Digital Multimeters are hand-held testing devices with the following measurement capabilities: AC and DC voltage, AC and DC current, frequency, resistance, capacitance, and duty cycle of logic level signals. They also check diodes and verify continuity. All multimeters feature true RMS AC measurements, a relative zero mode, data hold mode, and an intelligent automatic power off. An optional optically isolated computer interface with software facilitates the recording of readings from the meter to a computer.
Contact us if you have any questions.
You must be logged in to post a review.
We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.
Product Specifications
| Weight | 1 lbs |
|---|---|
| Shipping Dimensions | 10 × 10 × 12 in |
| Amperage Measurement | 600, 6000μA; 60, 600mA; 6, 10A |
| Battery | 9v |
| Capacitance | 60, 600nF; 6, 60, 600μF; 6, 25 mF |
| Conductance | 99.99 nS |
| Display | Backlit LCD With Dual 10,000 Count |
| Frequency Measurement | 15Hz- 50kHz Sine Wave, 5Hz – 1MHz Logic Level Square Wave |
| Includes | (1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400°F/204°C Max), Test Leads, Protective Boot, Carrying Case |
| Measurement Category | CAT IV, 1000 V |
| Replacement Part | TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A) |
| Resistance Measurement | 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ |
| Standard | CAT IV, C/UL US Listed, TRUE RMS, CE Listed |
| Temperature Rating | K Type, -58 To 1832°F (-50 To 1000°C) |
| Type | Digital |
| Voltage Measurement | 60, 600 mV, 9.999, 99.99, 999.9 V |
| Brand | Greenlee |
More Product Information
GREENLEE DM-810A True RMS Digital Multimeter
- True RMS for no-compromise accuracy
- Measures voltage, current, resistance, capacitance, and frequency
- Tests continuity and diodes
- Backlit LCD with dual 10,000 count displays
- BeepJack warns when test leads are incorrectly inserted in current measurement terminals
- Automatic and manual range selection
- Relative offset mode to see changes in measurements
- Data hold
- Use optional USB interface DMSC-9U for direct-To-PC logging
- Lifetime limited warranty

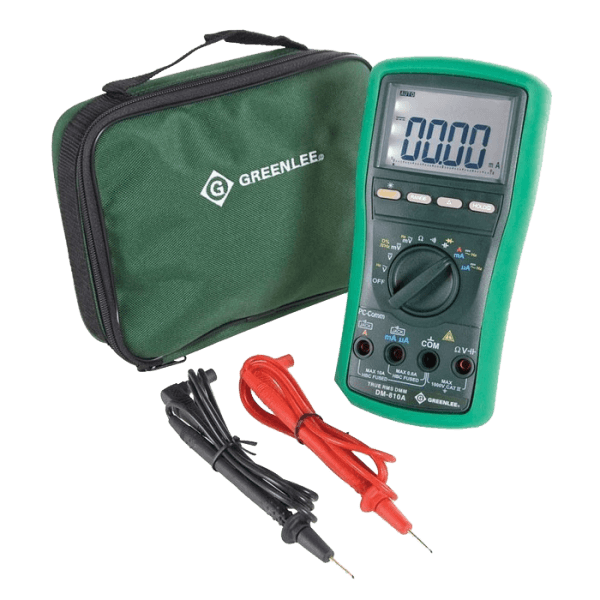

- Accessories included: (1)9V battery, test leads, protective boot, carrying case
