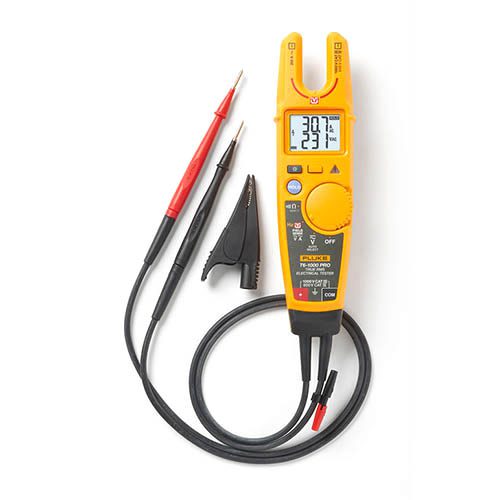

FLUKE T6-1000 Electrical Tester

Item_number: FLT6/1000PRO-AMER Categories: , , , , ,

The Fluke T6-1000 Electrical Tester with FieldSense™ technology lets you quickly, safely take True RMS voltage and current measurements without test leads.

Unlike other fork testers that merely detect voltage, the T6-1000 makes actual measurements, without contacting a live, metallic conductor. Just slide the 17.8 mm open fork, the widest in the industry, over a conductor and read simultaneous voltage and current values. Or simultaneous frequency and current values. The open fork works with wires up to AWG 4/0 (120 mm2). Or, you can use the attached test leads to measure voltage DC to 1000 V.

  • True RMS voltage and current to 200 A AC, 1000 V AC
  • Resistance 1 Ω to 100 kΩ

Work on any jobsite

Make use of the HOLD button to temporarily freeze the reading on the screen so you can keep working with the same measurement up. Plus, the display features large, easy-to-read numbers and a backlight for darker work environments or inside cabinets. The T6-1000 works with the Fluke TPACK ToolPak™ Magnetic Meter Hanger to make it even more convenient.

Contact us if you have any questions.

Item_number: FLT6/1000PRO-AMER Categories: , , , , ,

$281.24

FLUKE T6-1000 Electrical Tester

  • Measure voltage to 1000 V AC without test leads
  • Simultaneously measure voltage and current
  • 17.8 mm open fork is widest in the industry
  • Measure up to 200 A on 4/0 wires (120 mm2)

Quick Reference Guide

Safety Information

Measurement Specifications
Function Requires test leads Range Resolution Accuracy
FieldSense
ac voltage true-rms
No 1000 V 1 V ± (3 % + 3 counts) 45 Hz - 66 Hz
FieldSense
ac current true-rms
No 200.0 A 0.1 A ± (3% + 3 counts) 45 Hz - 66 Hz
FieldSense
frequency (Hz)
No 45 Hz – 66 Hz 1 Hz ± (1% + 2 counts)[3]
Volts ac true-rms Yes 1000 V 1 V ± (1.5% + 2 counts) 45 Hz - 66 Hz
Volts dc Yes 1000 V 1 V ± (1% + 2 counts)
Resistance Yes 2000 Ω 1 Ω ± (1% + 2 counts)
Yes 20.00 kΩ 0.01 kΩ
Yes 100.0 kΩ 0.1 kΩ
Safety 1000 V CAT III
600 V CAT IV

Additional information

Weight .78 lbs
Dimensions 2.4 × 10.2 × 1.7 in
Calibration

1-year calibration cycle

Temperature

Operating: 14 °F to 122 °F
Storage: -22 °F to +140 °F

Altitude

Operating: 6,562 ft
Storage: 32,808 ft

Relative Humidity

0% to 90%, 41 °F to 86 °F
0% to 75%, 86 °F to 104 °F
0% to 45%, 104 °F to 122 °F

Battery Type and Life

2 x AA (IEC LR6); 360 hours continuous, typical; 200 hours using FieldSense

Electromagnetic Environment

IEC/EN 61326-1: Portable
