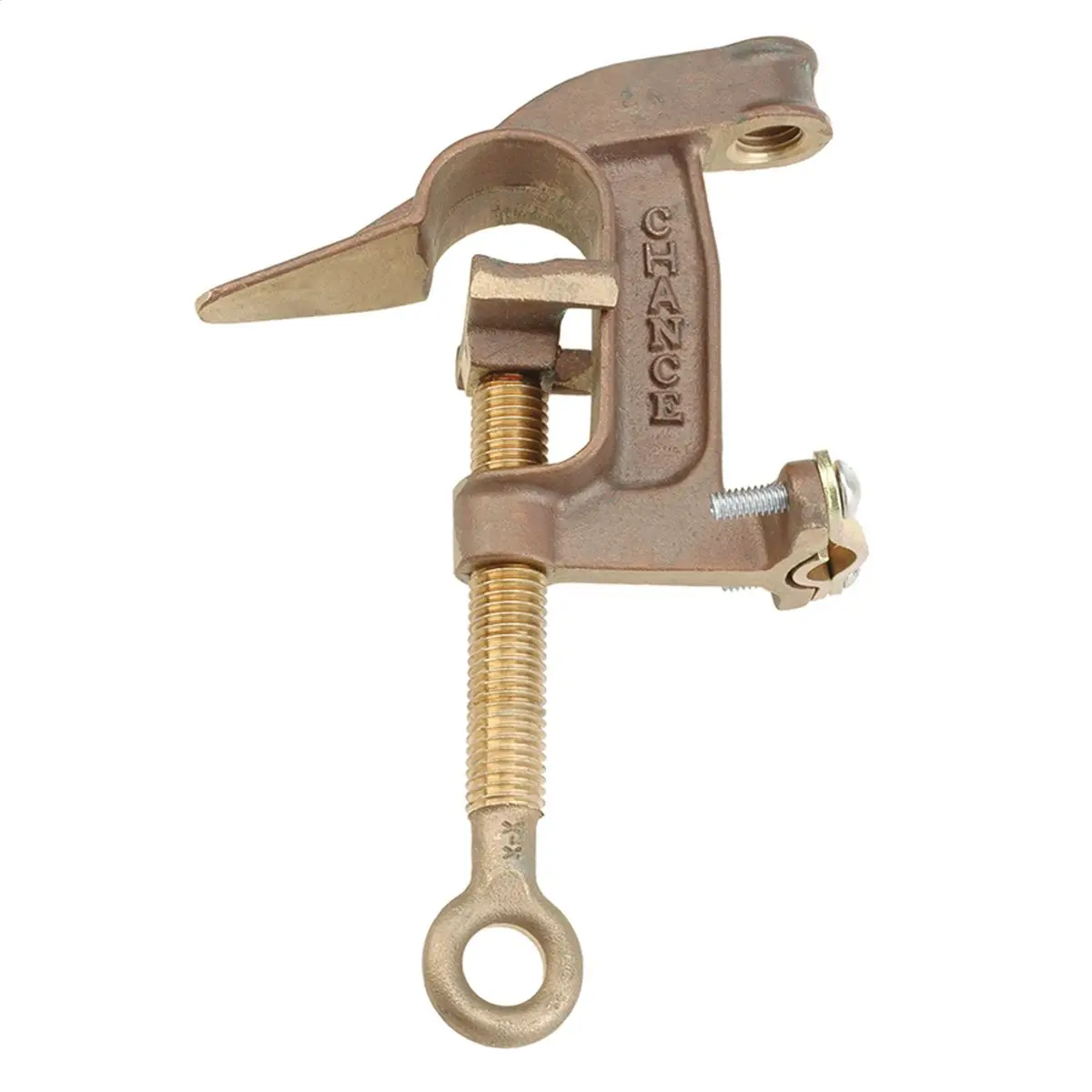

CHANCE Ground Clamp, C-Type, Type I-Class A-Grade 5, 1.25″ Jaw Opening
$ 138.15
Ground Clamp, C-Type, Type I-Class A-Grade 5, 1.25″ Jaw Opening. Bronze body, Smooth jaws, Bronze eyescrew with fine threads, Tapped for 5⁄8-11 UNC threaded ferrule
- C-Type Grounding Clamp
- Continuous Current 400A
- Fault Current 43kA for 15 cycles or 30kA for 30 cycles
- Main Line Range Max. 1033kcmil ACSR (1.25″)
Product Description
CHANCE Ground Clamp, C-Type, Type I-Class A-Grade 5, 1.25″ Jaw Opening
- C-Type Grounding Clamp
- Continuous Current 400A
- Fault Current 43kA for 15 cycles or 30kA for 30 cycles
- Main Line Range Max. 1033kcmil ACSR (1.25″)
- Main Line Range Min. #6 Sol. CU (0.162″)
- Jumper Range Max. 4/0 Grd. Cable
- Jumper Range Min. #2 Grd. Cable
- ASTM Type I, Class A, Grade 5
- Jaws Smooth
- Ferrule Threaded
Product Specifications
| Weight | 2.1 lbs |
|---|---|
| Shipping Dimensions | 10 × 5 × 3 in |
| Brand | ABChance |
| Installation Torque | 250 in-lb |
| Handle type | Eyescrew |
| Jaw Type | Smooth Jaws |
| Material | Bronze |
| Terminal Connection Type | 5/8"-11 Thread |
| Jaw Opening Size | 1.25" Max, .162" Min |
| Current Rating | 400 A |
| Fault Current-15 Cycles | 43000 A |
| Fault Current-30 Cycles | 30000 A |
| Grounding Wire Capacity Maximum | 4/0 Cable w/Threaded Terminal |
| Grounding Wire Capacity Minimum | #2 Cable w/Threaded Terminal |
| Fault Current-ASTM Grade | ASTM Grade 5 |
