SPX HYDRAULIC TECHNOLOGIES 13 HHC Series Cable & Bar Cutter 13 Ton
$3,791.95
Available on backorder

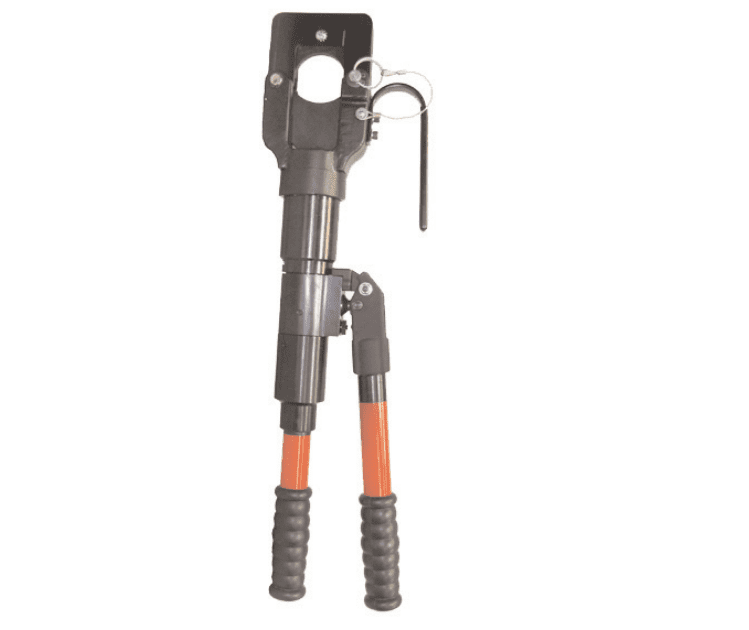

The 13-HHC-B Hydraulic Cutter Remote is a lightweight, compact, and extremely durable tool that has been designed for cutting a wide variety of materials.
Features insert-type blades that can be easily replaced in the field with the use of only a screwdriver. Other features include a hinged “ Flip Top” Head and a full 360 Degrees of head rotation.
Can be operated with any suitable hand or power pump capable of pressure output of 10,000 PSI. No special control valves are required since the cutter piston is spring returned.
Contact us if you have any questions.
You must be logged in to post a review.
We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.
Product Specifications
| Weight | 20.1 lbs |
|---|---|
| Shipping Dimensions | 27 × 8 × 5.5 in |
| Brand | SPX Flow |
More Product Information
SPX HYDRAULIC TECHNOLOGIES 13 HHC Series Cable & Bar Cutter 13 Ton
PUMP SECTION:
Injector Stroke: .56 in. (1.42 cm)
L P Output Per Stroke: .441 cu. in. (.007 liter)
H P Output Per Stroke: .034 cu. in. (.0005 liter)
L P Unloading Valve Setting: 500 psi (3,447 kPA)
L P Relief Valve Setting: 25 psi (172 kPA)
H P Relief Valve Setting: 10,000 psi (68,950 kPA)
Handle Effort: 4.2 lbs. per 1,000 psi (1.90 kg per 6,895 kPA)
Reservoir Capacity: 8.5 cu. in. (.139 liter)
Oil Type Recommended: Amoco Rykon MV
TOOL SECTION:
Bore Diameter: 1.875 in. (4.76 cm)
Stroke: 2.180 in. (5.54 cm)
Cutting Force: 13.180 tons U.S. (12.5 tons Metric)
Head Rotation: 360 degrees continuous
Questions? Contact Us!
As always, if you have any questions about this tool, or stock quantities contact us by phone at: 877-860-5666
or by email: sales@tallmanequipment.com
